The MEX Dashboard is a web-based reporting tool that can be used to display KPI information for your maintenance organization. In essence it is a web-page that can display a range of graphs, gauges and lists that draw their information from your MEX database.
The intention of the MEX Dashboard is that any authorized person can access a web page and get a clear picture of how the maintenance department is performing.

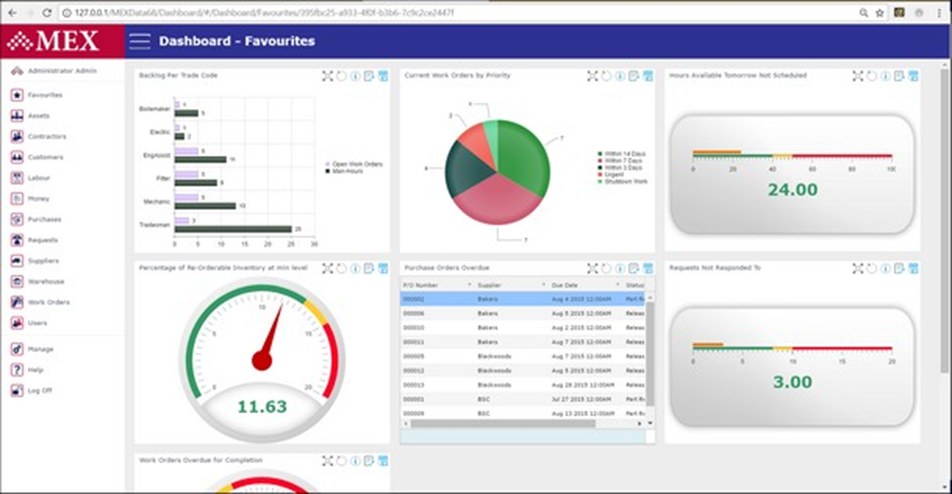

The MEX Dashboard
The MEX Dashboard is pre-loaded with 98 different KPIs and more KPIs can be added as required. The KPIs are organized into the following categories:
Assets, Contractors, Customers, Labor, Money, Purchases, Requests, Suppliers, Warehouse, Work Orders, Users.
Additionally there is a “Favorites” category which displays any of the KPIs that you have selected as a Favorite.
Logging on to the Dashboard
If MEX Security is enabled (meaning that you are required to enter a User Name and Password to access MEX) then you will also need to enter your MEX User Name and Password when you open up the Dashboard.

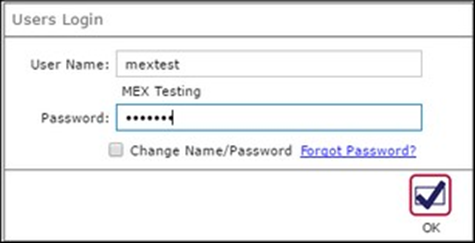

Logging On to the Dashboard
When you have the Dashboard web page open you are consuming a Dashboard User License. A Dashboard User License is included in the purchase of every MEX License. This means that if you have purchased five MEX user licenses then five users can be concurrently logged on to the Dashboard at the same time as five users are logged onto MEX.
Moving Around the Dashboard
There are only a few things that you need to know to move around in the Dashboard:
- To display a category of KPIs, you click on the category in the navigation bar that runs down the of the screen:

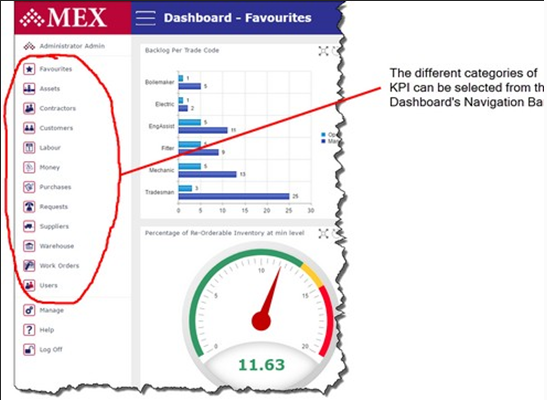

The MEX Dashboard's Navigation Bar
- To take a closer look at a KPI, click on the "Expand" icon in the top right-hand corner of the KPI. display the KPI in a full-screen view. When a KPI is expanded you can return to the previous scr on the KPI's "Contract" button as shown below:
Expanding the View of a KPI
In addition to the Expand/Contract icon, each KPI has an additional four icons in its top right-hand

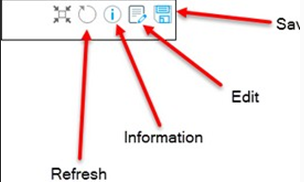

The KPI's Buttons
Refresh: Refreshes the KPI from the database. When a KPI is opened it displays information from the moment in time that it is displayed.
Clicking on the Refresh icon will re-query the database to display up-to-date information.
Information: Opens a pop- up with a more comprehensive description of the KPI.
Edit: Opens up the KPI's Details screen for editing. This is only available if your "Edit Dashboard KPIs" User Option is set.
Save: This swill download the KPI to a pdf file.
